Data Protection
It starts with 100% wireless capture

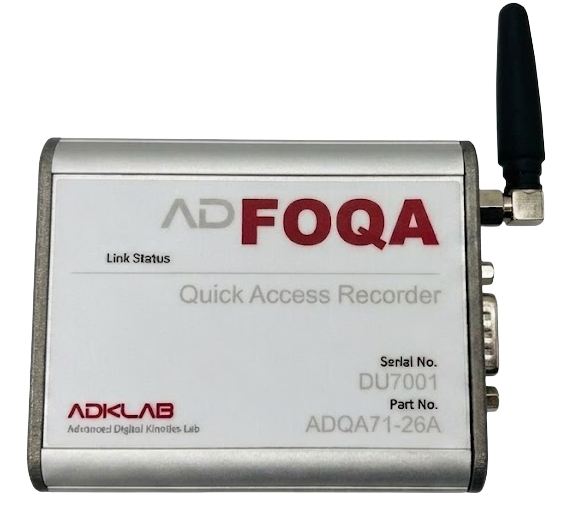

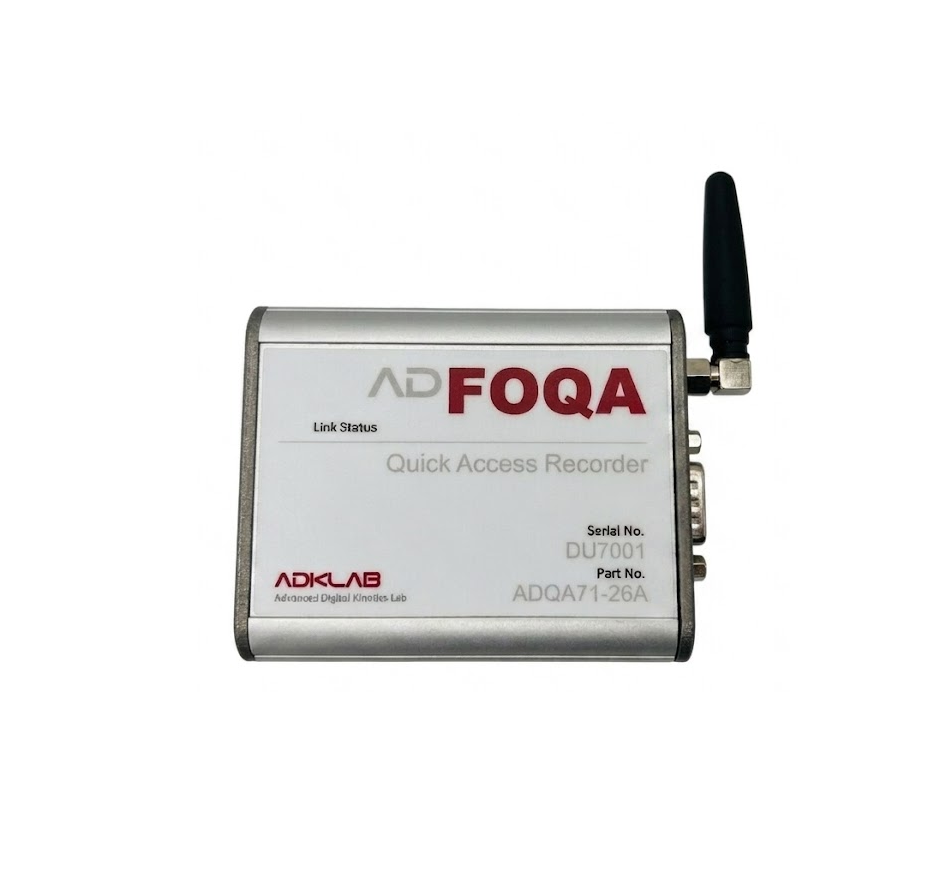

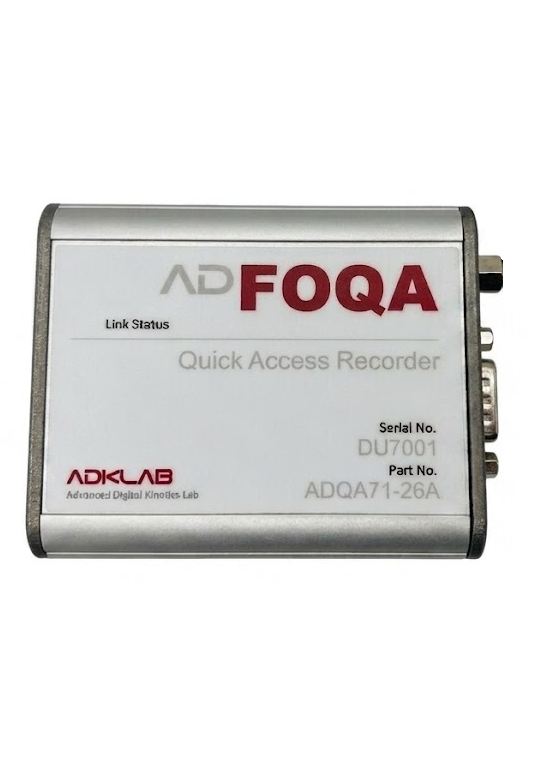

ADFOQA is an ARINC573/717 compatable Quick Access Recorder that is designed with reliability in mind.
Robust hardware and firmware design allows your data to arrive at your chosen FOQA provider after every flight, without loss or corruption.
The critical components to achieving your capture are:
- AD-PTEC Power DesignDesigned for a noisy power environment
- Clever Trigger LogicNo reliance on additional sensors
- Smart Data Storage & TransferEncryption, verification and failure management
- Global LTE Data ConnectivityYour SIM is provided and managed
- WIFI network failover on the groundAutomatic use of any public or private network in range
- Satellite ConnectionConstant monitoring
- A dedicated 24h support partnershipWe are here to help, anytime
100%

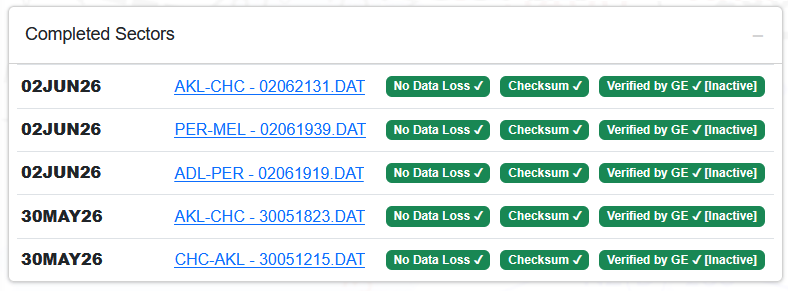

Sectors Verified
Data Flow Process
Data
Your Data Your Way
Encryption ends at delivery
Your data is safely handled in digital transit but we do not encode or change it in any way. This gives you the flexibility to use any chosen FOQA provider or process it in-house with your chosen system or software platform.
Our system can securely analyse your live data for the purpose of event alerting, SOP compliancy validation or reporting but only with your specific guidance and approval.
The ADFOQA concept :
When the aircraft is powered, it connects to your dashboard using any available network in your order of preference including:
WIFI, 4GLTE or Satellite.
Preferences and restrictions can be set based on location.
2. Engines Started
Satellite Connection Actived
On engine start, your aircraft continues to report events, flight parameters and a GPS position to your dashboard via satellite.
3. Event Awareness
Alerting via Satellite Connection
When an event is recognised, your aircraft will report this to your dashboard. An alert will follow to specified staff using email or SMS functionality.
4. Event Management
Support to Flight Crew
You can request additional data from the QAR for the active flight and can text-chat to crew using the dashboard.
5. Flight Completed
LTE or WIFI Connection Restored
When aircraft state is appropriate, flight data will be transmitted to your chosen FOQA provider and will be made available for download via the dashboard.
The QAR can be reached via Satellite where required for additional data until aircraft power is switched off.
6. Automated Analysis
SOP Compliance
Any SOP that can be measured against flight data can be programmed to flag a non-compliance of interest.
Non-compliance can be reported immediately or via a regular report. Alerting can also be combined with this feature based on interest level and associated risk.
Crew Support

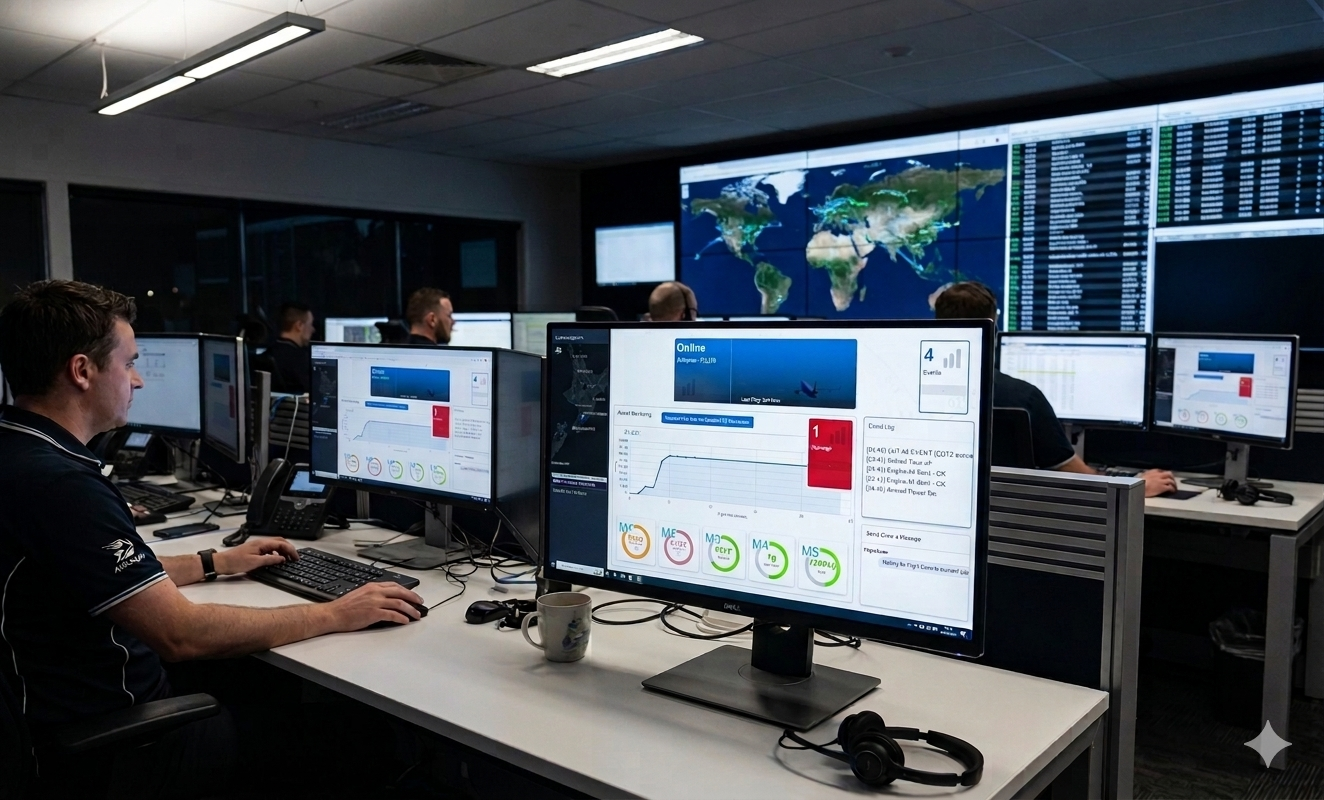

Engineering & Ops Control
Web

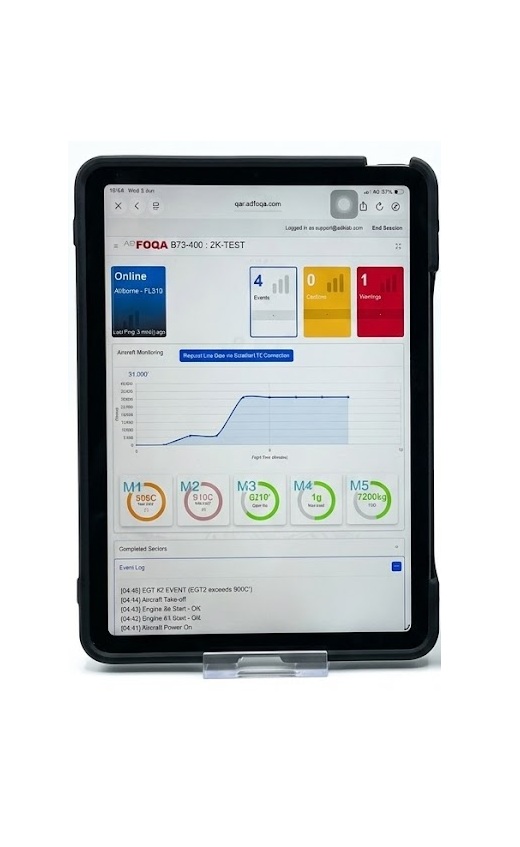

OnlineDashboard
Live Event Alerting
Email and SMS text alerting can be activated to advise appropriate managers of an aircraft event and facilite appropriate crew support during and post flight.

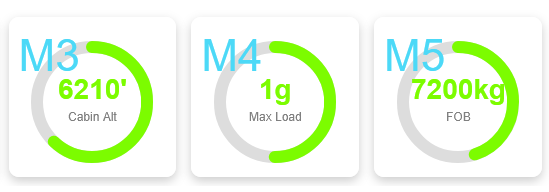

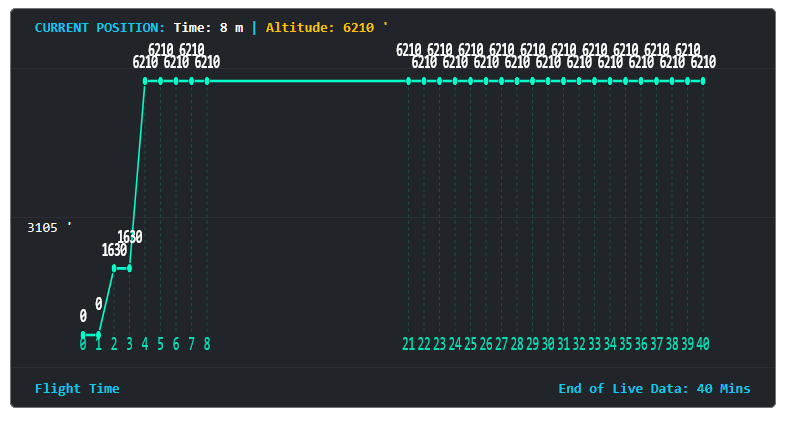

The dashboard can also be used to monitor aircraft position, parameters and any events in real time.
Crew
SatTXT
Connected to QAR
Direct Crew Connection

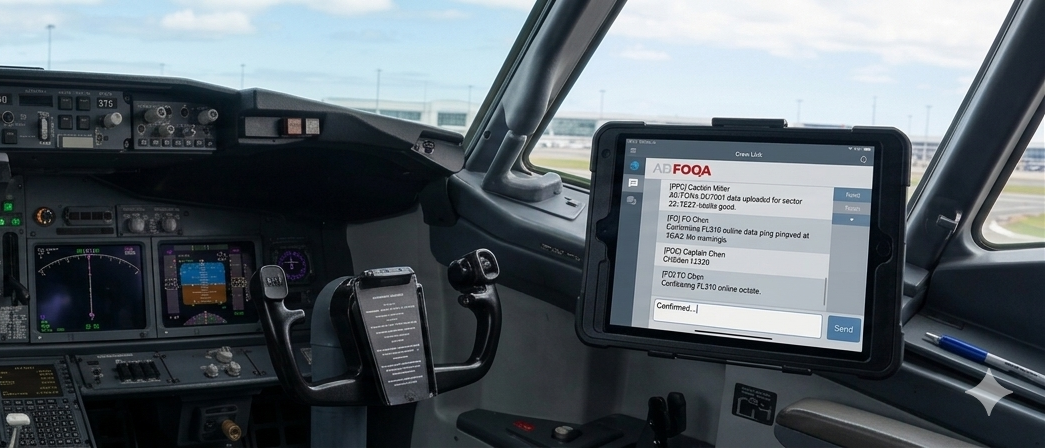

Flight crew can download an iPad app to connect them with operations and maintenence support on the ground via Crew SatTXT.
Crew iPads can connect directly to the QAR to send TXT communication via satellite like a traditional ACARS facility permits.

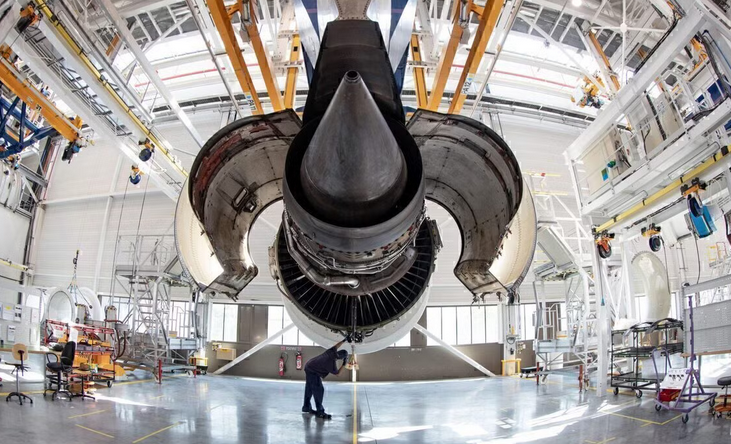

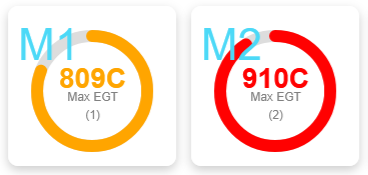

Engine Data & Trend Analysis
Data that is transferred from ADQAR to your FOQA endpoint can also be sent to nominated third parties such as engine management platforms and component monitoring services.
We can also setup analysers to flag data of interest for push or regular reporting to run in isolation of your FOQA function.
Your FOQA

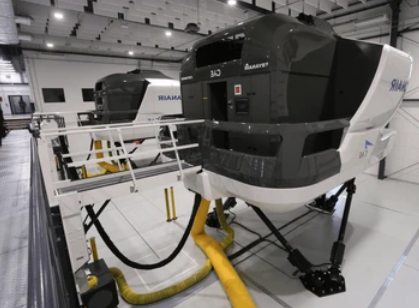

Training, Standards & Compliance
Proven Standards
To compliment your existing FOQA process, the ADQAR can be instructed to actively validate any new or updated SOP that is measurable by flight data during live operations.
This feedback can then be delivered through a regular report or an immediate alerting function depending on the nature and safety implication of the procedure.
This mechanism allows procedures and training inititives to be guided and validated based on data driven insights.
Rejected Takeoff (6 Events) : Accuracy of Execution
-
100%Thrust Levers ...IDLE
-
100%Reverse Thrust ...MAX AVAIL
-
100%Aircraft ...STOP
-
80%Reversers ...STOWED
-
60%Park Brake ...ON
One Plan
Ongoing Fees & Support
ADQAR Device
Your ADQAR is available for a trial period. It can then be purchased for a one-off fee.
Your purchase covers ongoing firmware updates, support and a full waranty for the life of the device.
ADQAR Service
Your ADQAR service is provided on a subscription basis. Your ongoing subscription fee is charged monthly, is cancellable at any time and includes all wireless connnection charges, data processing and forwarding services, ongoing updates, customisation and a full support service.
Like a mobile phone plan, your standard subscription covers fair and reasonable usage and additional data spend may attract additional fees in some cases.
Inclusions are:
- Fully Provisioned SIM Card for Global Use
- 3G/4G LTE Global Data Allowance
- Satellite Global Data Allowance
- 24/7 Support Service
- Event Alerting via SMS Text Message or Email
- Fair-use Customisation and Service Enhancement
